Bathology Atmospheric 310 Single Vent Bath Fan w/ Optional Lighting, 100 CFM

Bathology Atmospheric 310 Single Vent Bath Fan w/ Optional Lighting, 100 CFM

Super-quiet in-shower fan, high efficiency, small 7” grille diameter, optional dimmable light, remote fan motor, UL-listed for wet locations.  Consider the Atmospheric 320 for dual-area ventilation.

This product is not designed for In-Shower applications. For Steam or In-Shower use please see the Atmospheric 410.

FEATURES

• Super quiet performance
• High CFM/Watt efficiency
• Superior performance @ Higher Static

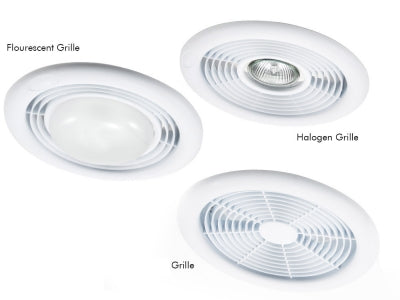

• Small 7” grille diameter
• Optional Dimmable 50W Halogen Lighting
• Optional Dimmabe LED Lighting
• May qualify for local utility rebate
• Simplified installation
• Inline backdraft damper
• Remote placement of fan motor
• Flex duct installation
• EBM motor assembly
• Variable speed control
• Uses 4” duct
• C-UL US listed
• UL listed for Wet Locations
• IC rated

INCLUDES

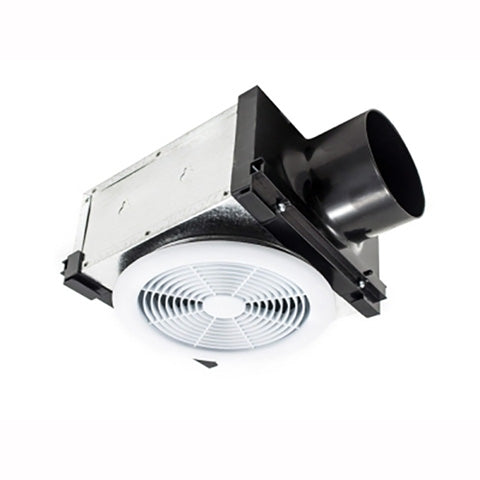

• Remote fan, 100 CFM with mounting bracket
• Damper, 4"
• Electronic Timer Control
• Flex Duct, 4"x25'
• Mastic, 11oz tube
• (3) Sheet Metal screws
• (4) Duct Straps, 18"
• (4) Duct Straps, 36"
• Manufacturer’s warranty
• Installation manual

SPECIFICATIONS

Model: Atmospheric 310

Fan

• Type: In-Line
• Dimensions: 9-1/2" Diameter x 10" Length
• Housing Composition: ABS - PC Blend Thermo Plastic
• Air Volume: 100 CFM @ 0.20" W.G.
• Operating Voltage: 120VAC
• Power Consumption: 21.1W
• Nominal Amperage: 0.18 Amps
• Lubrication: Permanently lubricated, sealed ball bearings
• Protection: Thermal overload, automatic reset
• Speed Control: 100% speed controllable
• Testing: U.L. Listed; CSA Certified
• Airstream Temperature Tolerance: Up to 140°F

Damper

• Dimensions: 4" Diameter x 6" Length
• Body Composition: Galvanized Steel, 28 Gauge
• Blade Composition: Aluminum Blades
• Seal Composition: Foam

Roof Cap (Option)

• Type: Removable screen, duct extension
• Dimensions: 8-1/4" L x 6-1/4" W x 4-1/4" H
• Composition: Galvanized Steel, 28 Gauge
• Rough-In Cut-Out: 4-1/8"
• Duct Connection: 4"

Wall Vent (Option)

• Type: Duct extension
• Vent Dimensions: 6" L x 6" W x 7/16" H
• Duct Extensions: 4" Diameter x 12' Length
• Grille Composition: Polyethylene plastic, UV resistant, brittleness temp -99°F
• Extension Composition: Galvanized Steel, 28 Gauge
• Rough-In Cut-Out: 4-1/8"
• Duct Connection: 4"

Flex Duct

• Dimensions: 4" Diameter x 25' Length
• Composition: Reinforced grey polyester with fiberglass insulation
• Testing: UL-181
• R-Value: 4.2
• Operating Temperatures: Max -20°F to 140°F

Duct Tie

• Composition: Nylon
• Operating Temperatures: Max 185°F
• Tensile Strength: 175 lbs
• Testing: UL-181-B-C

Mastic

• Composition: Liquid water-based sealant, UV resistant, grey
• Use: Indoor/Outdoor
• Testing: UL-181-B, USDA, FDA, EPA approved

Lamp (Option) Halogen

• Operating Voltage: 120VAC, 60Hz
• Nominal Amperage: 0.42 Amps

Lamp (Option) LED

• Operating Voltage: 120VAC, 60Hz
• Nominal Amperage: 0.12 Amps

Control

• Type: Electronic Timer
• Operating Voltage: 120VAC, 60Hz
• Amperage Rating: 20 Amps
• Motor Load: 1HP

Optional Control

• Type: Slide Speed
• Operating Voltage: 120VAC, 60Hz
• Amperage Rating: 5 Amps
