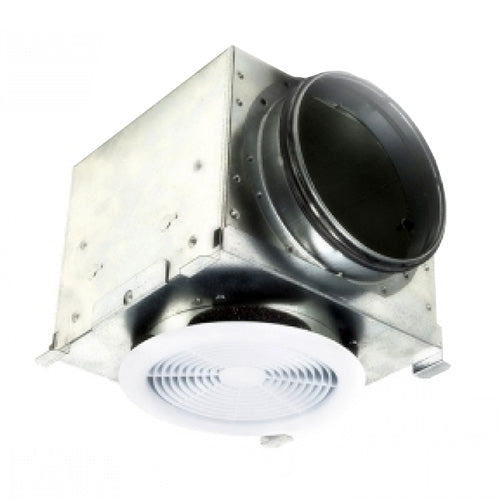

Bathology Atmospheric 330 Single Vent Bath Fan, 190CFM

Requires ceiling grille with housing and wall or roof vent. Consider the Atmospheric 320 for dual grille applications.

This product is not designed for In-Shower applications. For Steam or In-Shower use please see the Atmospheric 410.

FEATURES

• Super quiet performance
• High CFM/Watt efficiency
• Superior performance @ Higher Static
• Small 7" grille diameter
• May qualify for local utility rebate
• Simplified installation
• Inline backdraft damper
• Remote placement of fan motor
• Flex duct installation
• EBM motor assembly
• Variable speed control (sold separately)
• Uses 6" duct
• C-UL US listed
• UL listed for Wet Locations
• IC rated

INCLUDES

• Remote fan, 190 CFM with mounting bracket
• Damper, 6"
• Electronic Timer Control
• Flex Duct, 6"x25'
• Ceiling grille and housing measuring 7-3/16"Lx7-3/16"Wx5-5/16"H
• Mastic, 11oz tube
• (8) Duct Straps, 36"
• (3) Sheet Metal screws
• Manufacturer's warranty
• Installation manual

SPECIFICATIONS

Fan

• Type: In-Line
• Dimensions: 11-3/8" Diameter x 8" Length
• Housing Composition: Galvanized Steel
• Air Volume: 190 CFM @ 0.20" W.G.
• Operating Voltage: 120VAC
• Power Consumption: 60W
• Nominal Amperage: 0.52 Amps
• Lubrication: Permanently lubricated, sealed ball bearings
• Protection: Thermal overload, automatic reset
• Speed Control: 100% speed controllable
• Testing: U.L. Listed; CSA Certified
• Airstream Temperature Tolerance: Up to 140°F

Damper

• Dimensions: 6" Diameter x 6" Length
• Body Composition: Galvanized Steel, 28 Gauge
• Blade Composition: Aluminum
• Seal Composition: Foam

Roof Cap (Optional)

• Type: Removable screen, duct extension
• Dimensions: 10-3/4" L x 8-1/4" W x 5-1/4" H
• Composition: Galvanized Steel, 28 Gauge
• Rough-In Cut-Out: 6-1/8"
• Duct Connection: 6"

Wall Vent (Optional)

• Type: Duct extension
• Vent Extensions: 8-1/8" L x 8-1/8" W x 7/16" H
• Duct Extensions: 6" Diameter x 12' Length
• Grille Composition: Polyethylene plastic, UV resistant, brittleness temp -99°F
• Extension Composition: Galvanized Steel, 28 Gauge
• Rough-In Cut-Out: 6-1/8"
• Duct Connection: 6"

Flex Duct

• Dimensions: 6" Diameter x 25' Length
• Composition: Reinforced grey polyester with fiberglass insulation
• Testing: UL-181
• R-Value: 4.2
• Operating Temperatures: -20°F to 140°F

Duct Tie

• Composition: Nylon
• Operating Temperatures: Max 185°F
• Tensile Strength: 175 lbs
• Testing: UL-181-B-C

Mastic

• Composition: Liquid water-based sealant, UV resistant, grey
• Use: Indoor/Outdoor
• Testing: UL-181-B, USDA, FDA, EPA approved

Control

• Type: Electronic timer
• Operating Voltage: 120VAC, 60Hz
• Amperage Rating: 20 Amps
• Motor Load: 1 HP

Optional Control

• Type: Slide speed
• Operating Voltage: 120VAC, 60Hz
• Amperage Rating: 5 Amps
