Bathology Spectrum 220 Ice-White LED In-Shower Lighting System
Rediscover Bathing with the purity of Ice White, by Bathology.
The Spectrum 220 Ice White LED Lighting System delivers mood-setting ambiance and visual clarity right where it's needed. Designed for in-shower use and is engineered to withstand the extremes of steam showers.
This water-safe lighting system features four digitally controlled LED lights that can be located in any shower, steam bath, or bathing space. Their low-profile, flush-mounted design enables them to be installed in convenient space-defining locations, while providing the ideal amount of lighting for superior bathing ambiance.
Each light illuminates locations such as benching, walkways, corners, and niches for safety, convenience, and visual style. It also highlights various effects within its radius such as swirling mist, shimmering water, falling droplets, or rushing falls. Consequently, the more lights installed, the greater the impact on the bathing environment.
The Spectrum 220 comes complete with everything necessary to create a memorable bathing experience. Four LED, Ice White lights with the option to expand to six, are controlled by a slim-profile 2" diameter switch. This in-shower switch features a soft-touch keypad, with on/off, status indicator light, and 20-minute timer function, allowing for set it and forget it convenience.
Note: These lights are not intended as primary, task-based light sources, but rather to accent various environment elements such as water features, niches, and benching while creating an incredible ambiance-filled visual experience.
Bathing Enthusiasts! Send us your bathing area drawings. We welcome the opportunity to specify a color bathing system and layout that will exceed your expectations and change your life! Call us at 800-707-2862 or email us at ProjectCoordinator@SteamSaunaBath.com and a bathing specialist will be excited to assist you.
FEATURES
- In-shower use
- 6-Light capacity
- Low-voltage operation (5VDC)
- 20-Minute off-delay
- Soft-Touch keypad in Polished Chrome or Brushed Nickel finish
- Water-safe materials
BENEFITS
- In-shower convenience
- Set it and forget it
- Safe operation
- 20-Minute internal electronic timer
- Flush-mounted, low-profile design
INCLUDES

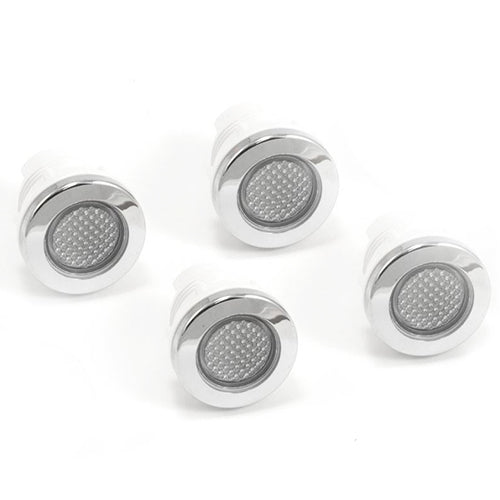

- 4 LED in White, Polished Chrome or Brushed Nickel trim
- 8 O-rings
- 4 Light cables
- Soft-Touch light switch, 2-1/32” diameter x 1-5/16” deep, white, 5VDC, in Polished Chrome or Brushed Nickel trim
- Power supply module with NEMA male plug, 120VAC/60HZ, 15 AMP
- 25’ Light extension cable
- 25’ Soft-Touch switch cable
- 2 Plastic wall anchors
- 2 Stainless steel screws, #6
- Installation and operation manual
SPECIFICATIONS
Switch
-
Type: Flush-Mounted
-
Voltage: 5V DC
-
Diameter: 2-1/32"
-
Trim Depth: 3/16"
-
Trim Finish: Polished Chrome or Brushed Nickel
-
Body Diameter: 1-17/32"
-
Body Depth: 1-5/16"
-
Rough-In Cut-Out: 1-1/2" Diameter
-
Time Circuit: 20-Minute Off Delay
-
Maximum Wall Material Thickness: 2-1/2"
Power Supply
-
Electrical: 120VAC, 15 AMPS (0.155 A @ 120 VAC)
-
Length: 6-1/8"
-
Width: 4-1/4"
-
Height: 2-18"
-
Testing: CSA, Type 2
-
Shipping Weight: 9 lbs

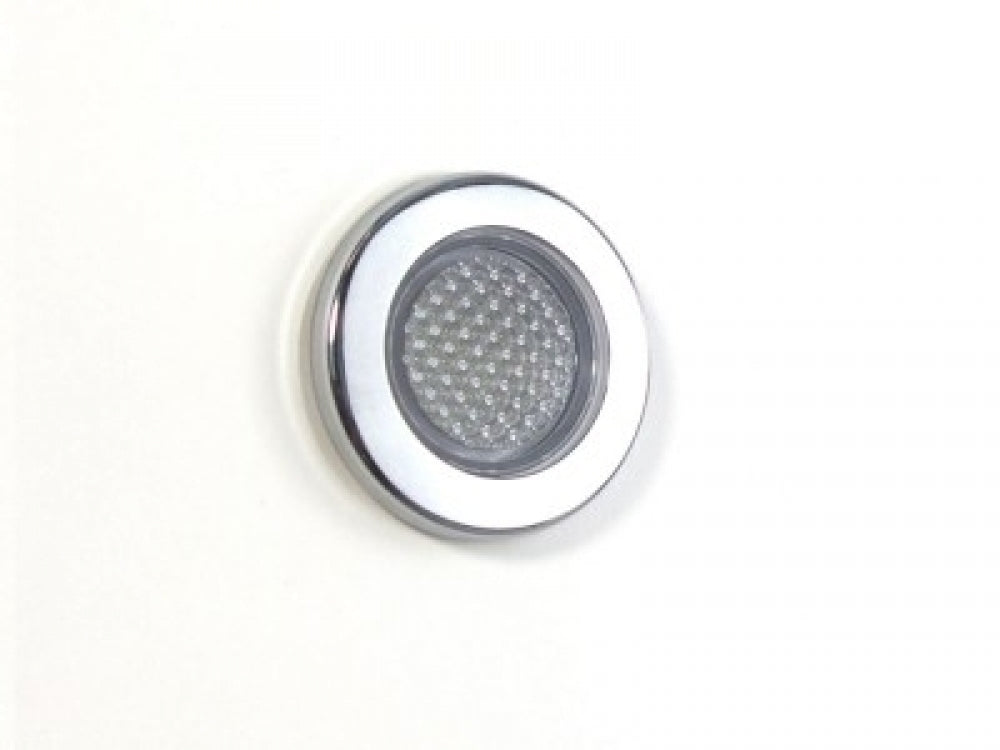

Brilliance Fixture
-
Type: LED White
-
Operating Voltage: 12V DC
-
Maximum Input Current: 75mA @ 12V DC
-
LED: 9 LED Lights
-
Beam Angle: Wide Angle
-
Trim Finish: Polished Chrome or Brushed Nickel
-
Housing Composition: ABS Plastic
-
Lens: Clear, 1-11/64" Diameter
-
Lens Composition: Optical Grade ABS
-
Rough-In Cut-Out: 1-5/16"
-
Trim Dimensions: 1-11/16" Diameter, 7/32" Profile
-
Body Dimensions: 1-1/4" Diameter × 1-29/32" Deep
-
Rating: N/A
-
Certification: CSA / UL
