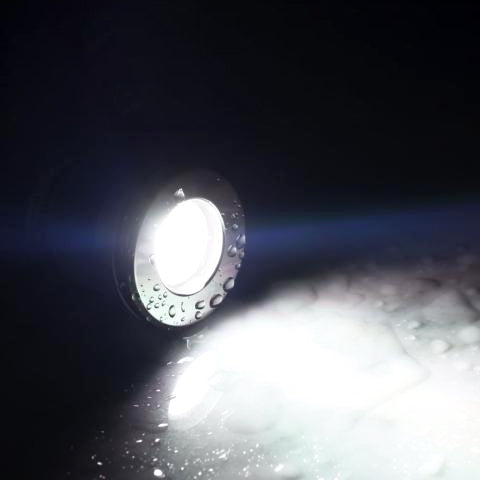

Bathology Spectrum 440 Steam Room / LED Lighting System, Single Zone

Bathology Spectrum 440 Steam Room / LED Lighting System, Single Zone

Shower your bathing space with a customizable array of natural white in-shower lights from Bathology! Designed for use in steam rooms and showers.

Ambiance
Ideal for use inside steam showers and wet areas where waterproof lighting is required, these distinctive, flush-fitting LED light fixtures will intensify your bathing enjoyment while providing elegant luminosity. One system can power from 1 to 11 lights, giving you the flexibility to cost-effectively produce the perfect amount of brightness for your shower or bath. The pure white light will reveal the true colors of your surfaces materials and visually accentuate the steam within the bathing space.

Direct the flush-mounted lights to highlight and define specific areas and enhance the safety or visual effect. Their compact 1-1/4" diameter lens and integrated appearance make them perfect for ceiling and under bench applications. An IP68 immersion rating ensures that these lights are engineered and trusted as safe for use in wet areas.

Beauty and Durability
Spectrum 440 lights are impervious to corrosion and employ a polished sealed stainless steel bezel mounted to a robust stainless steel body. With rugged construction and 100,000-hour LED's, these lights will provide a lifetime of bathing splendor. Opt for either a tempered clear lens for more focused lighting or a frosted lens for a softer intensity.

Easy Installation
The Spectrum 440's transformer mounts easily and can be connected to a switchable 120VAC power source. Power is converted to a low-voltage12V, and is routed in series to each light fixture using cable in lengths available from 25 to 100 feet. A single transformer may be used to connect up to eleven lights.

Meticulous planning and consideration has been taken to ensure easy and trouble-free and water-tight installation making the Spectrum 440 a must for new construction or rebuild projects. Tradesman and installers will appreciate the installation template supplied with each system for precise light placement every time. The compact size also provides a greater variety of placement options.

FEATURES

• In-shower use, water tight, submersible
• Suitable as primary light source
• 11-Light capacity
• Polished stainless steel bezel
• Tempered frosted or clear glass lens
• Water-safe materials
• Stainless Steel Material
• Luminous Flux 142 2.5%
• Pure-white LED light
• 35 Degree beam angle
• Not dimmable

BENEFITS

• In-shower convenience
• Uses conventional light switch
• Safe operation
• Ease of installation
• Flush-mounted, low-profile design
• IP68 immersible rating

INCLUDES

• One waterproof LED light fixture w/ clear lens
• Installation template
• Power box
• Transformer
• Relief strain
• Cables
• Silicone sealant
• Connectors
• Installation and operation manual
• Limited warranty

SPECIFICATIONS

Model: Spectrum 440

Power Supply

• Operating Voltage: 120V AC
• Output Voltage: 700mA
• Power Consumption: 35W
• Nominal Amperage: 1.1 Amps
• Dimensions: 5-7/8” W × 1-1/8” H × 1-5/8” D

Brilliance Fixture

• Type: LED Cool White (5650–6300K)
• Operating Voltage: 12V DC
• Maximum Input Current: 700mA
• LED: 1 × 3 Watt
• Beam Angle: 35° Clear / 120° Frosted
• Lumens: 142 lumens max per fixture
• Trim Finish: Polished Stainless Steel
• Housing Composition: Stainless Steel
• Lens: Clear or Frosted, 1-1/4” Diameter
• Lens Composition: Tempered Glass
• Rough-In Cut-Out: 1-5/8” to 1-11/16"
• Trim Dimension: 2” Diameter, 1/8” Profile
• Body Dimensions: 1-15/32” Diameter × 1-7/8” Deep
• Rating: IP68
• Certifications: CE / RoHS / WEEE

Enclosure

• Housing Composition: Steel, black powder-coated finish
• Dimensions: 7-3/4” W × 1-7/8” H × 4-7/8” D
• Standards: NEMA 1
• Listings: ETL, UL

Construction Template

• Composition: Steel, galvanized, 22-gauge
• Dimensions: 15-1/8” L × 1/32” H × 3” W
