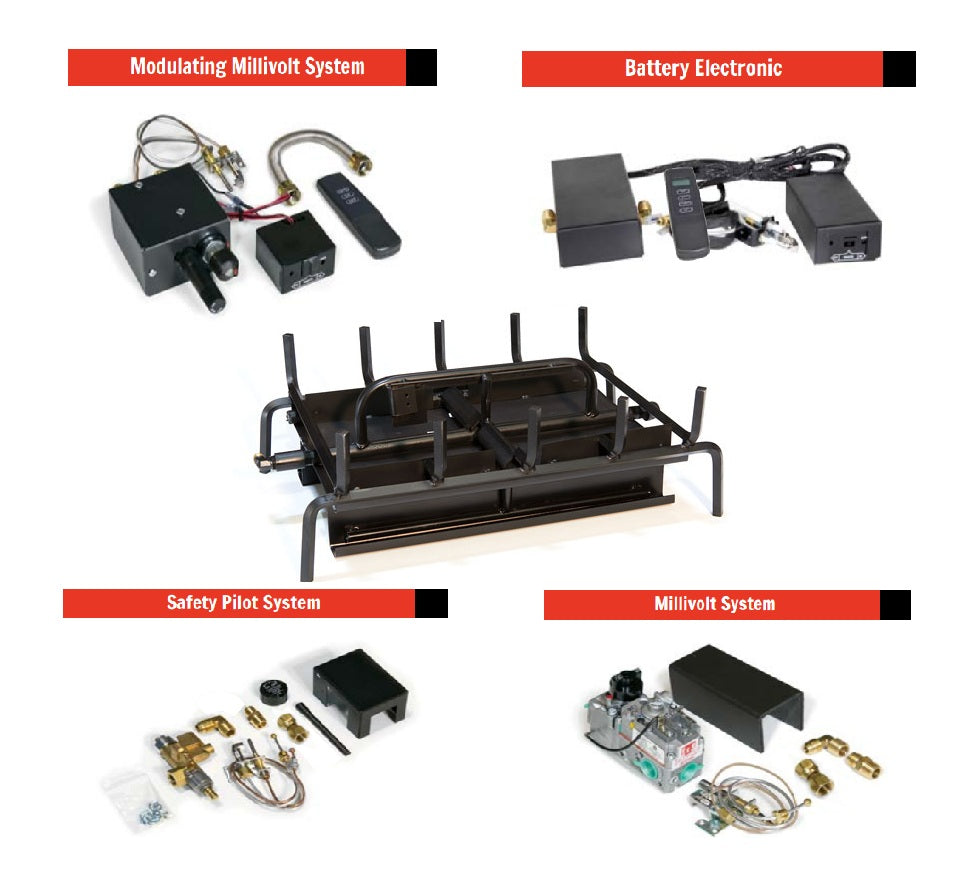

Grand Canyon Gas Logs Assembled See-Through Triple Burner System, 18" to 42"

• Sizes: 18” – 42”
• Style: Even distribution rear burner with dual action middle burner & dedicated ember glow burner
• Standards: ANSI Certified with Control Systems
• Design: Fully Welded System with Sandless Design
• Materials: Stainless Steel Chassis
• Warranty: Lifetime Warranty when installed indoors
• Piping: 1/2” Piping & ½” Bar Stock
• Fittings: Gas Inlet Left or Right
• Pilot: Concealed Pilot Mounting Brackets
• Convertible to LP: NG burner convertible to LP
• Media: Includes Lava Rock, Embers & Connection Fittings

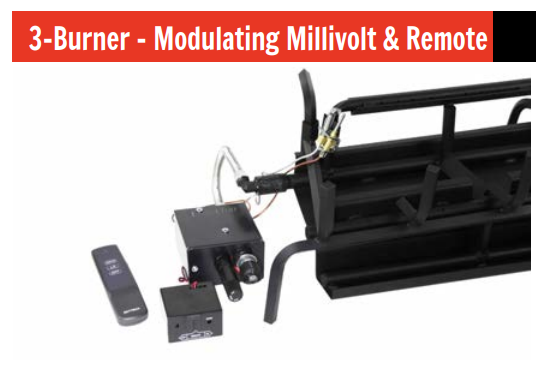

Assembled Modulating Millivolt System

• Pilot: Standing Pilot System
• Power: Millivolt
• Design: Low Profile Side Mount
• Operations: Variable Flame Remote Only
• Max Inlet: 14” W.C.
• Valve: Valve Temp Rating 225°
• NG: (Natural Gas) 7” W.C. — 120,000 BTU’s
• LP: (Liquid Propane) 7”–14” W.C. — 120,000 BTU’s

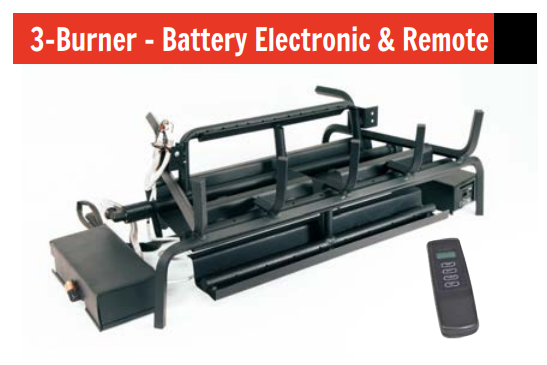

Assembled Battery Electronic Ignition System

• Pilot: On-Demand
• Power: 2-D Cell Battery Electronic Ignition
• Design: Low Profile Split System
• Operations: On/Off Remote Operations ONLY
• Max Inlet: 14” W.C.
• Valve: Valve Temp Rating 175°
• NG: (Natural Gas) 3”–7” W.C. — 120,000 BTU’s
• LP: (Liquid Propane) 8”–14” W.C. — 140,000 BTU’s

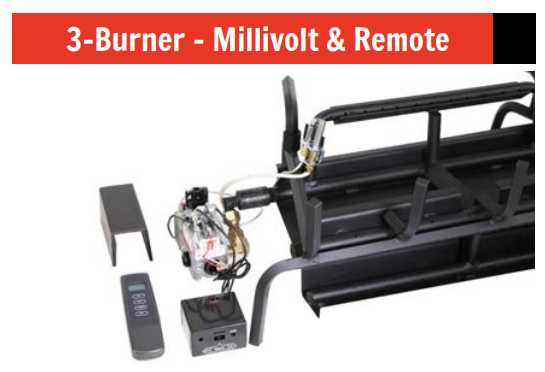

Assembled Millivolt System

• Pilot: Standing Pilot System
• Power: Millivolt
• Design: Low Profile Side Mount
• Operations: On/Off Remote or Wall Switch
• Max Inlet: 14” W.C.
• Valve: Valve Temp Rating 175°
• NG: (Natural Gas) 3”–5” W.C. — 70,000 BTU’s
• LP: (Liquid Propane) 8”–12” W.C. — 110,000 BTU’s

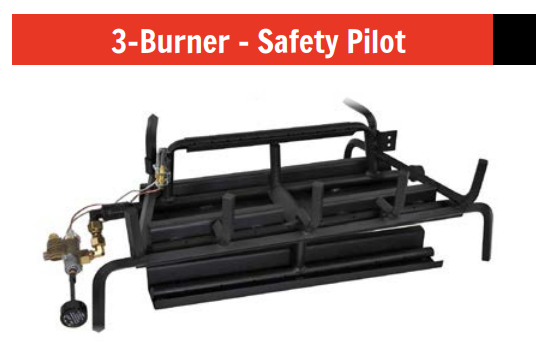

Assembled Safety Pilot System

• Pilot: Standing Pilot System
• Power: Millivolt
• Design: Low Profile Side Mount
• Operations: Manual On/Off Operations ONLY
• Max Inlet: 14” W.C.
• Valve: Valve Temp Rating 300°
• NG: (Natural Gas) — 90,000 BTU’s
• LP: (Liquid Propane) — 90,000 BTU’s
