Mr.Steam CX Steam Shower Generator Package, Up to 24kW

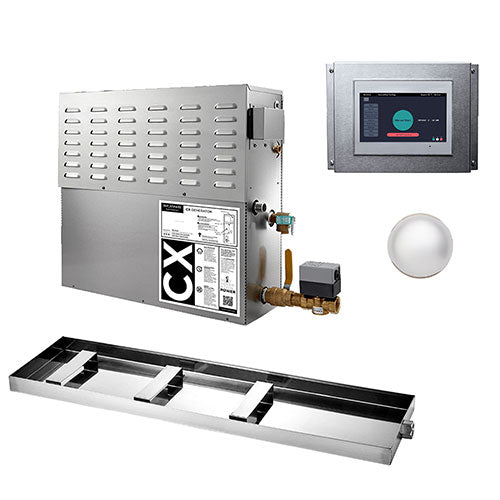

The Mr.Steam CX Generator Package is the next generation of steam generator technology and is designed for health clubs and spas. This collection combines everything you need to create the perfect steam experience, including a CX Generator, CX Control, Commercial SteamHead, Condensation Pan, and a factory-installed AutoFlush System.

• 9kW - For sauna rooms from 0 to 360 cubic feet
• 12kW - For sauna rooms from 361 to 500 cubic feet
• 15kW - For sauna rooms from 501 to 600 cubic feet
• 20kW - For sauna rooms from 601 to 800 cubic feet
• 24kW - For sauna rooms from 801 to 1000 cubic feet

FEATURES

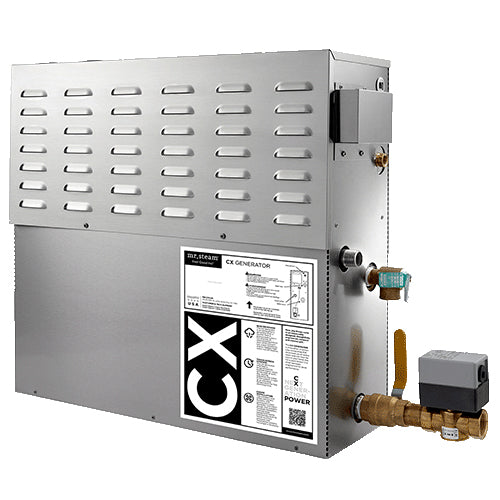

CX Generator

• Industrial-grade, large diameter, serviceable heating element
• Electronic water-level control system
• Stainless steel jacket prolongs life
• Quieter than a pressurized system
• Program to preheat the steam room at the start of each day
• Internal temperature shut-off to prevent low water conditions and integral high water cut-off

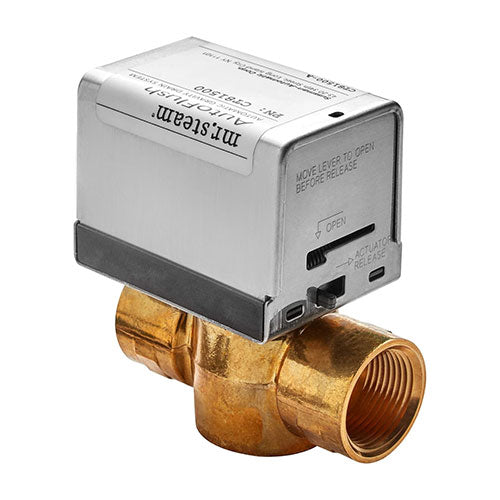

• Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
• Compact size offers more flexibility with room design and straightforward installation
• All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
• Designed for commercial applications that require continuous or near continuous use so they are available to use all day
• Dimensions: 33.9"L x 7.9"W x 22"H (including factory-installed AutoFlush System)

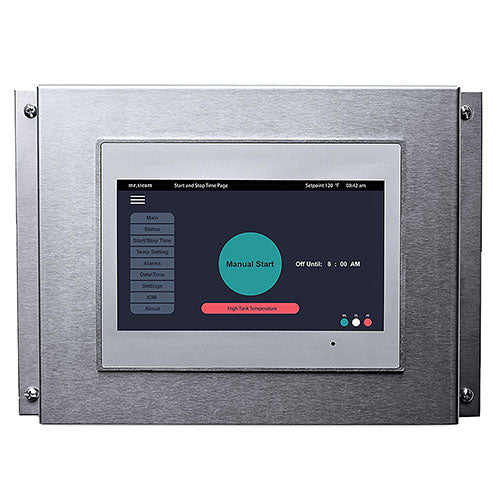

CX Control

• 7” color touch screen control with menu driven user interface
• Easily set on/off time and view system status while the unit is running
• Controls multiple CX Generators in series
• Dimensions: 7.1"L x 1.6"W x 5.3"H

Commercial SteamHead

• Complete with polycarbonate Acrylic Shield
• Comes in a Polished Chrome finish
• No assembly of moving parts required
• Dimensions: 3.1”Diameter x 1.8”W

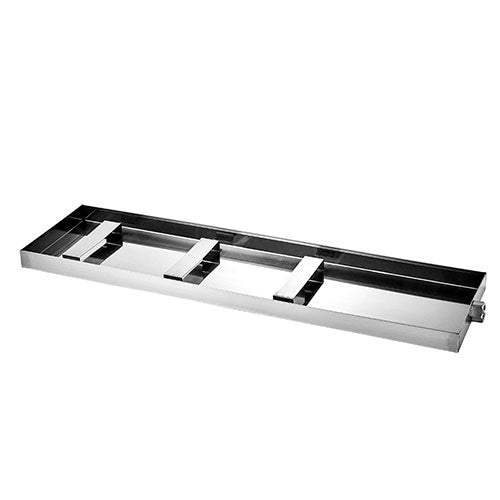

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface with steam generator placed inside
• Dimensions: 33"L x 1.5"W x 9"H

INCLUDES

CX Generator

• CX Generator
• Installation and Operation Manual
• 1-Year Limited Warranty

CX Control

• CX Control
• 1-Year Limited Warranty

Commercial SteamHead

• Commercial SteamHead
• 1-Year Limited Warranty

Condensation Pan

• Condensation Pan
• 1-Year Limited Warranty

SPECIFICATIONS

Model: CX0360–CX1000

• Construction Material: Stainless Steel
• Installation Type: Hardwired
• Kilowatt Rating: 9kW–24kW
• Wattage: 9000–24000
• Water Supply Connection: 3/8" NPT
• Drain Connection: 1" NPT
• Safety Valve Connection: 3/4" NPT
• Minimum Cubic Feet: 0
• Maximum Cubic Feet: 1000
• Product Dimensions: 33.9"L x 7.9"W x 22"H (includes factory-installed AutoFlush System)
• Shipping Weight: 60 lbs

CX Control

• Product Dimensions: 7.1"L x 1.9"W x 5.3"H

Commercial SteamHead

• Product Dimensions: 3.1" Diameter x 1.8" Depth

Condensation Pan

• Product Dimensions: 33"L x 1.5"W x 9"H
