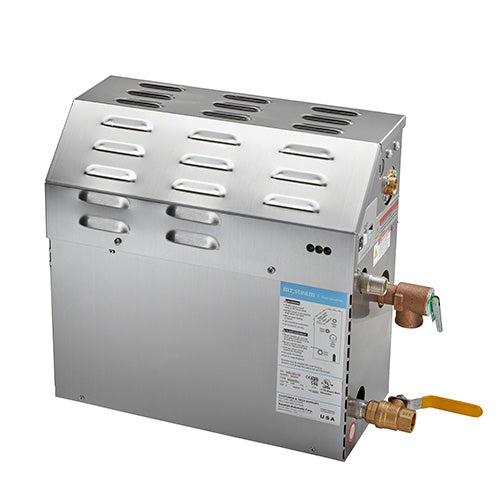

The Mr. Steam MS-R (Model MS90R2401) is a compact, efficient steam generator designed for small residential steam rooms. Its stainless-steel construction and microprocessor-based control system provide quiet, reliable, and consistent steam output. With low water consumption and optional Express Steam for rapid heat-up, the MS-R delivers a spa-quality experience in a compact package.
Features
- 5 kW capacity (MS90R variant), suitable for small steam rooms (~0–71 cu. ft.)
- Corrosion-resistant stainless-steel tank for long-term durability
- Microprocessor control system with diagnostic LED indicators
- Low-voltage safety circuits for added protection
- Compact design for installation in tight spaces like closets, cabinets, or under sealed benches
- Optional Express Steam feature for rapid heat-up and consistent temperature
- Water-efficient: uses less than 2 gallons per 20-minute session
- 60-minute automatic shutoff safety timer
- Limited lifetime parts warranty
Includes
- Steam Generator (MS90R2401)
- Installation & Operation Manual
- Limited Lifetime Warranty
Specifications
- Model / SKU: MS90R2401
- Series: MS-R
- Power Rating: 5 kW
- Voltage / Phase: 240 V, Single-Phase
- Supported Room Volume: 0–71 cu. ft.
- Water Inlet: 3/8″ NPT
- Steam Outlet: 3/4″ NPT
- Drain Connection: 1/2″ NPT
- Construction Material: Stainless steel
- Water Usage: Less than 2 gallons per 20-minute session
- Warranty: Limited Lifetime
Dimensions
- Width: 14.5″
- Depth: 6.8″
- Height: 14.8″
- Weight: ~25 lbs
