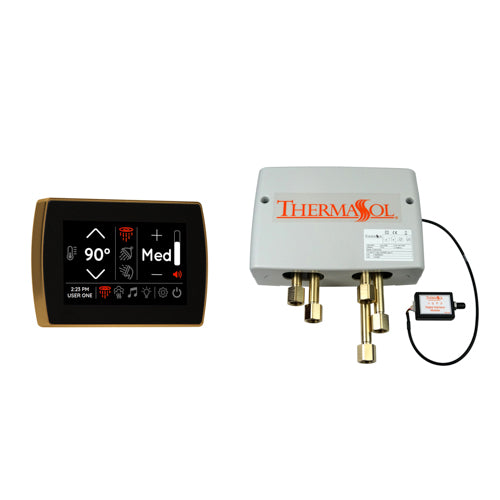

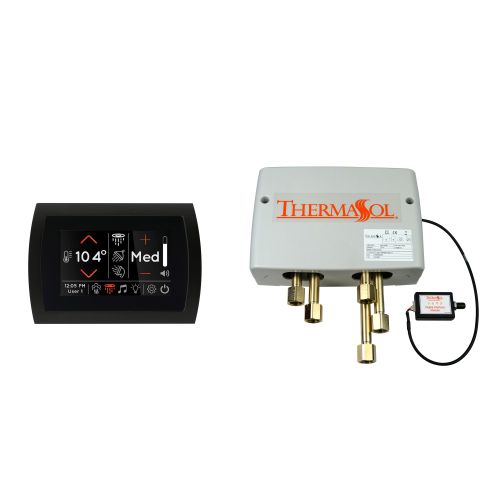

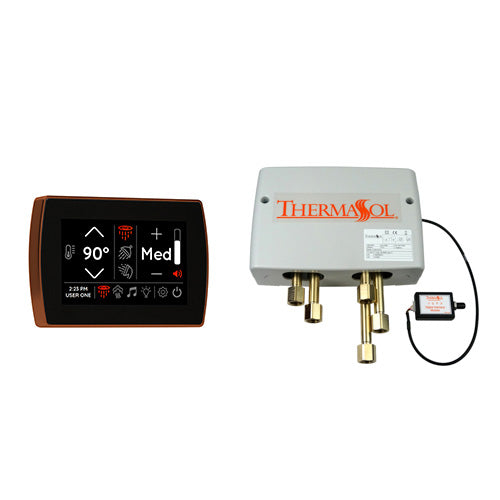

ThermaSol STC Digital Shower Package

SignaTouch Control w/ Digital Shower Valve

The Thermasol Digital Shower Package combines the easy-to-read configurability of the SignaTouch with the Digital Shower Valve's precise thermostatic mixing for complete control of your shower setup.

The ThermaSol Digital Shower Package allows three separate fixtures to operate cohesively with customization through a digital control.

Operate the SignaTouch's full color capacitive touchscreen display to navigate a full array of system functions. The Digital Shower Valve has outputs for three separate fixtures to work simultaneously, with precise temperature control and customizable pressure settings. With two customizable user profiles, antiscald protection and whisper quiet operation, users can create a personalized experience with seamless control and enhanced comfort.

Choose from different finishes and control installation types for a sleek, smart shower system from ThermaSol.

FEATURES

SignaTouch

• Easy to read, full color capacitive touchscreen display.
• Straightforward single touch navigation between water, steam, temperature, lighting and sound control.
• Operates shower fixture, steam generator, and multi-sensory rainhead functions.
• Operates SmartSteam™, FastStart™ and PowerFlush™ technology.
• Fully water and steam proof for easy installation in any environment.
• Built-in Bluetooth® to operate audio functions through a smart device.
• Customizable preset preferences for two user profiles.
• Can be installed vertically or horizontally for a personalized look.
• Choose between different styles and multiple trim finishes.
• Surface Mount dimensions: 5.8"W (14.7 cm) x 0.7"D (1.8 cm) x 4"H (10.2 cm)
• Recessed dimensions: 5.6"W (14.2 cm) x 0.65"D (1.7 cm) x 3.5"H (8.9 cm)
• Designed, engineered and built in the U.S.A.
• 2-year warranty.

Digital Shower Valve

• Consistent water volume with precise temperature control.
• Customizable low, medium or high-water pressure settings for a personalized experience.
• Industry-leading ceramic disc Flühs valves to ensure reliability and durability.
• Operates 2 industrial-grade stepper motors with 400 positions to eliminate noise.
• Built-in anti-scald protection for comfort and safety.
• May be installed up to 30 ft. away from shower.
• Output valves for 3 different water fixtures.
• Backup battery for long lasting use.
• Dimensions: 11"W (27.9 cm) x 3"D (7.6 cm) x 7"H (17.8 cm)
• Designed, engineered and built in the U.S.A.
• 1-year warranty.
• IAPMO approved.

INCLUDES

SignaTouch

• Control
• Silicone
• Mud Ring
• Static Cling Warning Label
• Installation Instructions
• 2-Year Warranty

Digital Shower Valve

• Digital Shower Valve
• Screw Set
• Connection Nipple Set
• 50 ft. CAN Bus Cable
• Digital Interface
• Backup Battery
• Installation Instructions
• 1-Year Warranty

SPECIFICATIONS

SIGNATOUCH

• Construction (Surface Mount): 6061 Billet Aluminum
• Construction (Recessed): Black Acrylic
• Display: 5" Capacitive Touchscreen
• Display Resolution: 480 x 800
• Display Full Color: 16.7M
• Interface: Single Touch
• Width (Surface Mount): 5.8" (14.7 cm)
• Depth (Surface Mount): 0.7" (1.8 cm)
• Height (Surface Mount): 4" (10.2 cm)
• Width (Recessed): 5.6" (14.2 cm)
• Depth (Recessed): 0.65" (1.7 cm)
• Height (Recessed): 3.5" (8.9 cm)
• Weight: 2 lbs (0.9 kg)

DIGITAL SHOWER VALVE

• Two Inputs: 1/2" FNPT
• Three Outputs: 1/2" FNPT
• Power Supply Input: 110 VAC, 0.5 AMP
• Power Supply Output: 15 VDC, 3 AMPS Required
• Water Output: 9.25 GPM at 45 PSI
• Width: 11" (27.9 cm)
• Depth: 3" (7.6 cm)
• Height: 7" (17.8 cm)
• Weight: 16 lbs (7.3 kg)
