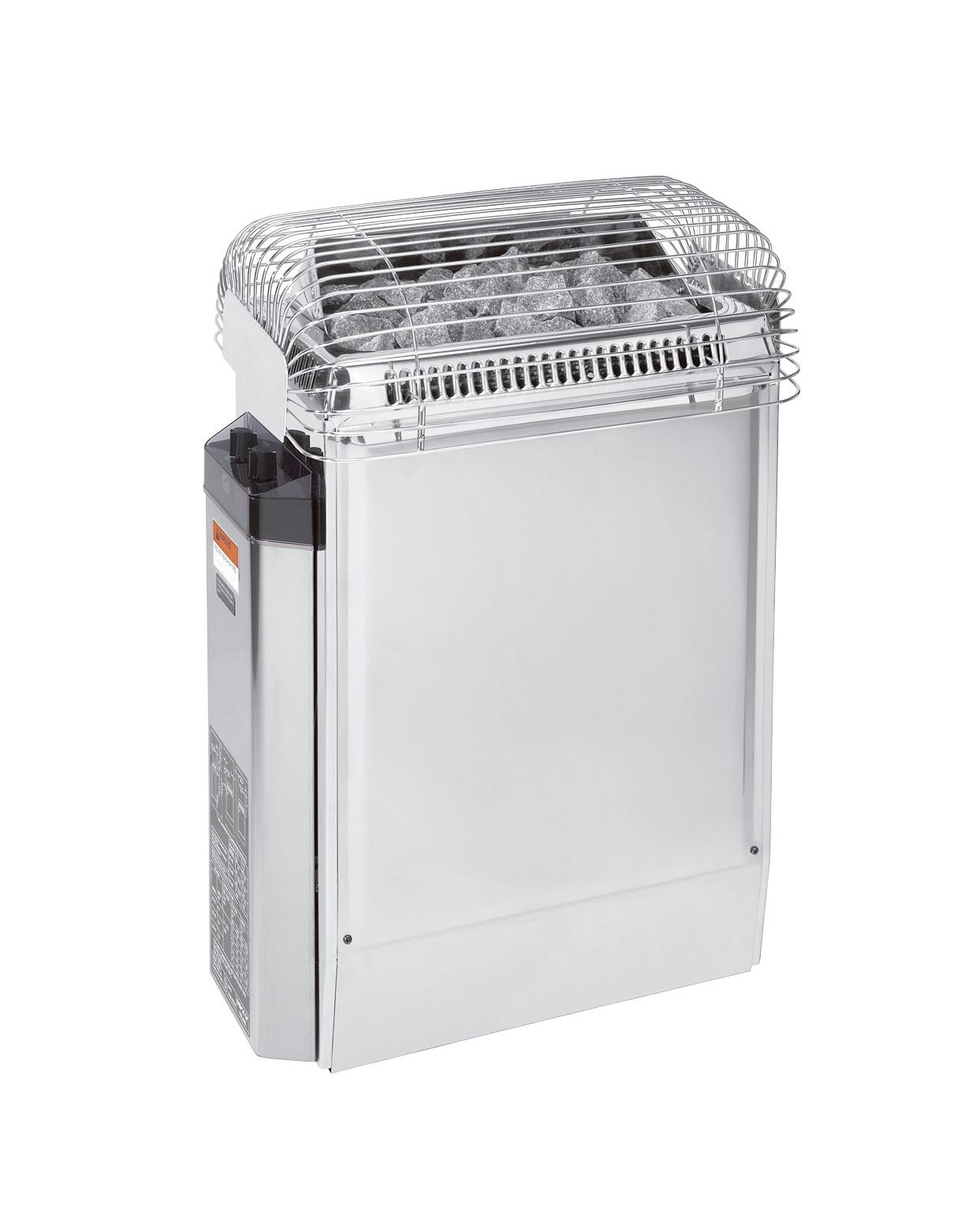

Harvia TopClass KV80 Electric Heater – JKV802401
The Harvia TopClass KV80 is an 8.0kW, 240V single-phase electric sauna heater with a stainless-steel body, reversible illuminated side control panel, and a compact wall-mounted design ideal for medium-sized home saunas.
Features
- Power: 8.0 kW (240 V, 1-phase)
- Control: Built-in illuminated control panel, reversible left or right side
- Timer: 60-minute timer with 8-hour pre-set/delay start
- Construction: Stainless steel outer casing and stone compartment
- Mounting: Wall-mounted installation with mounting rack
- Stone capacity: Approx. 20 kg (≈44 lb)
- Room size: Suitable for 7.1–12 m³ sauna rooms
- IP Rating: IPX4 moisture protection
- Safety: UL-listed
- Origin: Designed and engineered in Finland
Dimensions & Specs
- Height: 650 mm
- Width: 450 mm
- Depth: 300 mm
- Net weight: 16.6 kg
- Minimum room height: 2.0 m
- Ceiling clearance above heater: 1.1 m
Clearances
- Front: 150 mm
- Sides: 100 mm
Electrical
- Voltage: 240 V, single phase
- Output: 8.0 kW
- Minimum breaker: 33.4 A
- Recommended supply cable: 8 AWG copper
- IP Rating: IPX4
Installation Notes
- Mount using the included wall bracket.
- Select left or right control panel orientation before installation.
- Use proper sauna stones—correct size and amount ensures optimal heating.
- Installation by a licensed electrician is strongly recommended.
